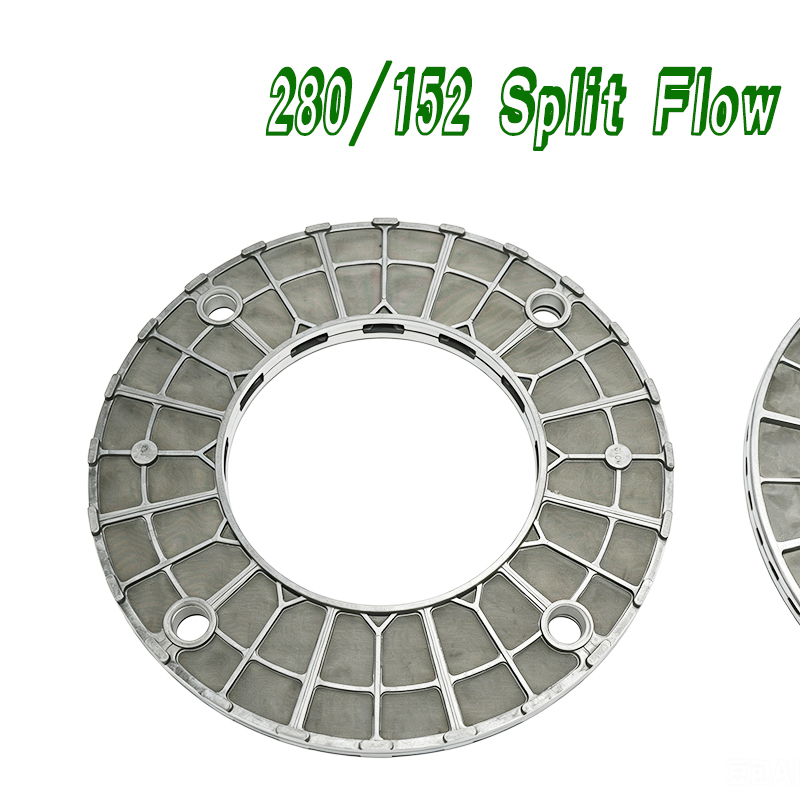

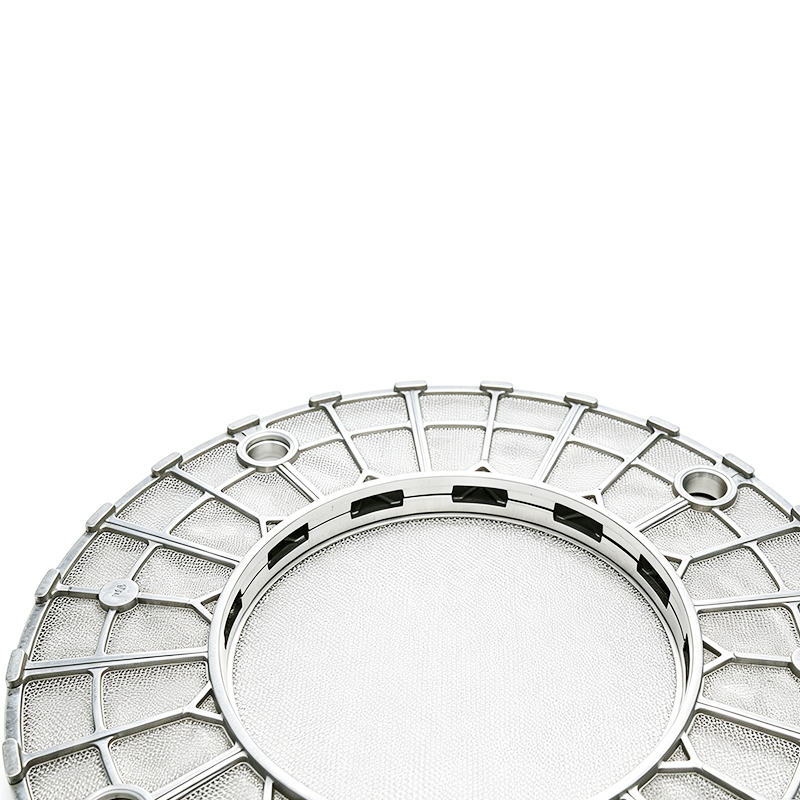

This product is a reinforced filter disc with flange mounting holes, integrally edge-welded with stamped metal frame and multi-layer stainless steel filter mesh. It is a dedicated matching filter element for flange type filters and oil filters.

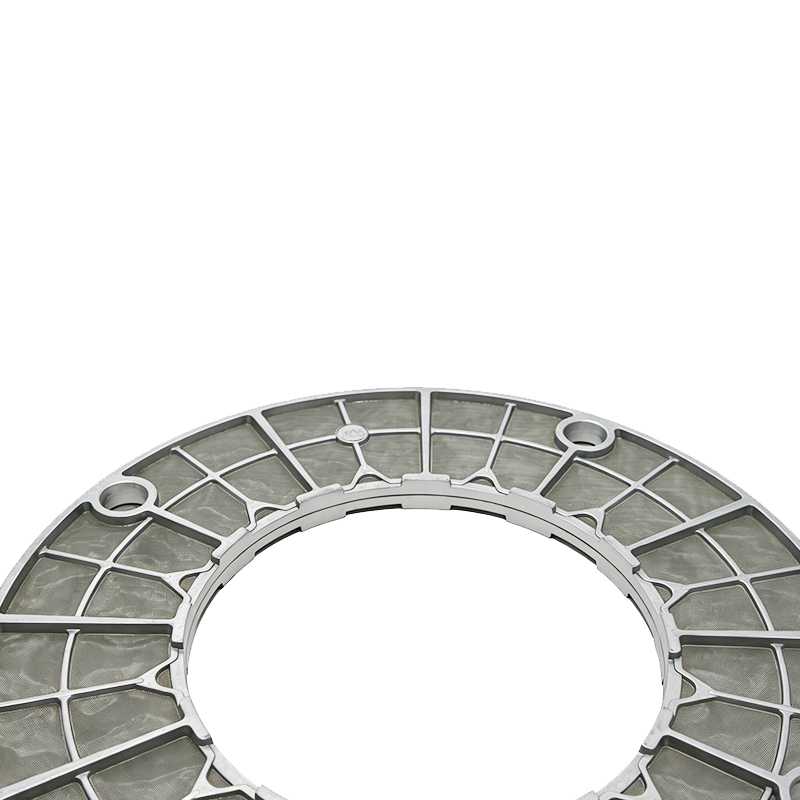

- Structural Design: Evenly reserved bolt mounting holes on the outer ring for direct bolt fastening installation. Grid reinforcing rib structure on the back greatly improves pressure resistance, preventing mesh bulging, deformation, welding failure and material leakage under high pressure. Custom non-standard inner/outer diameter, hole position and hole spacing are available.
- Material Options
- Frame Rim: Galvanized steel, 304 stainless steel, 316/316L stainless steel, aluminum alloy for selection
- Filter Medium: Single-layer stainless steel woven mesh, multi-layer sintered mesh, sintered felt; filtration accuracy ranges from 10μm to 1000μm, mesh count 10~1000 mesh customizable
- Performance Advantages: Resistant to acid, alkali, high temperature and hydraulic impact, anti-oxidation and anti-corrosion. It intercepts particles, impurities and sludge in oil and gas media to protect downstream oil pumps, valve groups and precision pipelines. Reusable after disassembly and cleaning with long service life and lower overall operating cost.
- Flexible Sizes: Multiple regular sizes in stock, customized special outer diameter, inner diameter, number & arrangement of mounting holes, overall thickness and multi-layer composite filter structure supported per drawings or samples.
Applications
- Marine & Shipping Industry: Marine lube oil filter, fuel filter, hydraulic pipeline flange filtration, pre-filtration for diesel engine lubricating oil
- Hydraulic & Lubrication System: Filtration for hydraulic station, gearbox, oil pump inlet and oil circuit flange assembly, trap impurities to protect hydraulic components
- Petrochemical Industry: Filtration for crude oil, additives and solvents, supporting filtration for gas-liquid separation, distillation, mist removal and defoaming processes
- Construction Machinery & Commercial Vehicles: Matching flange filter discs for engine oil and fuel filters of excavators, loaders and trucks
- Plastic & Rubber Extrusion Industry: Flange end filtration for extruders and pelletizing head filtration, remove melt impurities to improve plastic product quality
- Water Treatment & Environmental Protection: Pre-coarse filtration for circulating water and sewage pipeline flanges, gas-solid separation filtration for waste gas
- Air Compressor & Pneumatic System: Intake oil-gas separation and pipeline impurity filtration, protect air compressor impellers and precision pneumatic valves
Certification
- Spectroscopic test report for raw materials (material certificate for 304/316 stainless steel)
- Product aperture precision test report and pressure resistance test report
- ISO9001 Quality Management System Certification
- Third-party inspection report, ROHS environmental test report and factory inspection certificate can be provided on demand
MOQ & Packaging
- MOQ: Minimum order quantity is2pcs for regular in-stock models; 200 pcs for non-customized items, small batch trial orders are negotiable
- Packaging Method
- Inner layer: Packed with moisture-proof PE bags to prevent oxidation and dampness during transportation
- Middle layer: Separated by hard paper partitions to avoid extrusion collision deformation and mesh scratch
- Outer layer: Packed with thick corrugated cartons; fumigated wooden cases available for export, suitable for long-distance sea and land transportation
- Lead Time: In-stock orders shipped within 3~7 working days; customized orders finished and delivered within 7~15 working days
Factory
- Our factory has more than ten years of experience in processing metal filter mesh and filter discs, equipped with full automatic production lines for stamping, spot welding, edge wrapping and precision inspection
- Independent mold workshop for rapid mold development of special-shaped, flange type, annular, multi-layer composite filter discs, fast response for R&D and customization
- Source procurement of raw materials, strict three-level inspection including incoming material inspection, in-process patrol inspection and finished product delivery inspection, stable product consistency and ultra-low defective rate
- Long-term supplier for filter manufacturers, marine accessory factories and hydraulic equipment enterprises, rich experience in mass foreign trade order production and customs declaration, OEM private label service available
- Convenient transportation near logistics hub with efficient delivery, accepting domestic wholesale and global export orders
FAQ
Q1: Can this flange filter disc be customized according to drawings or samples?
A1: Customization based on drawings, samples and dimension requirements is supported. Outer diameter, inner diameter, quantity & pitch of mounting holes, thickness and filtration precision can all be adjusted as required.
Q2: How to select filter disc material?
A2: Galvanized frame with 304 mesh is suitable for normal temperature ordinary oil working conditions; full 316/316L stainless steel is recommended for acid, alkali, high temperature and corrosive media.
Q3: Can the clogged filter disc be cleaned and reused?
A3: Yes. After disassembly, clean impurities with diesel oil, ultrasonic cleaning or high-pressure air blowing, assemble for reuse after drying to greatly reduce consumable cost.
Q4: Are samples available for testing?
A4: Yes. Sample fee will be charged for small quantity samples, which can be deducted from bulk order payment after formal order placement. Freight collect or prepaid shipping are both negotiable.
Q5: Can customs declaration documents and certificate of origin be provided for export orders?
A5: Yes, we can provide complete export documents including commercial invoice, packing list, customs declaration form, CO certificate of origin, etc.
