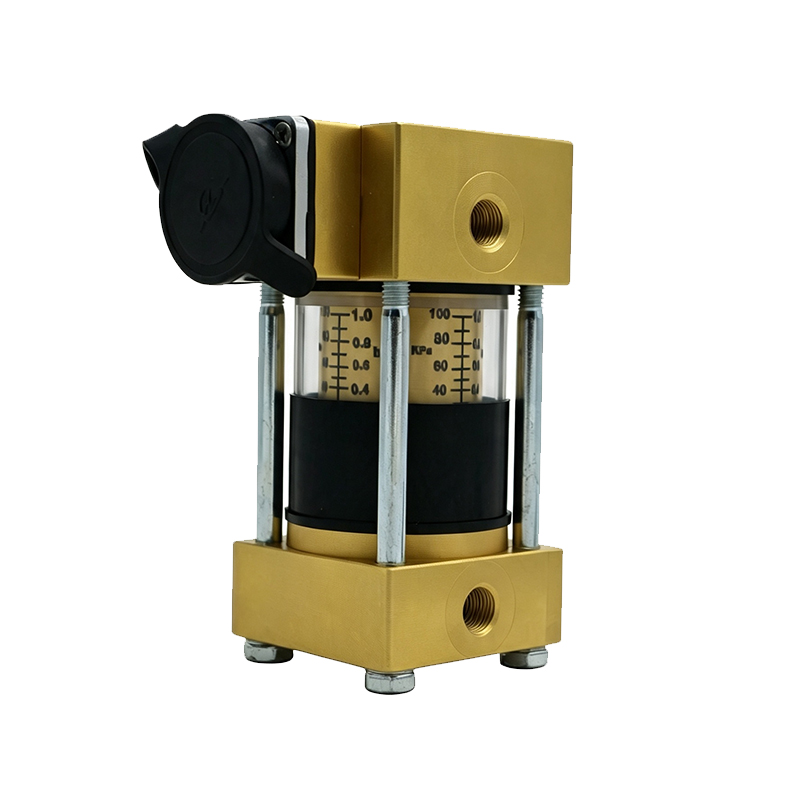

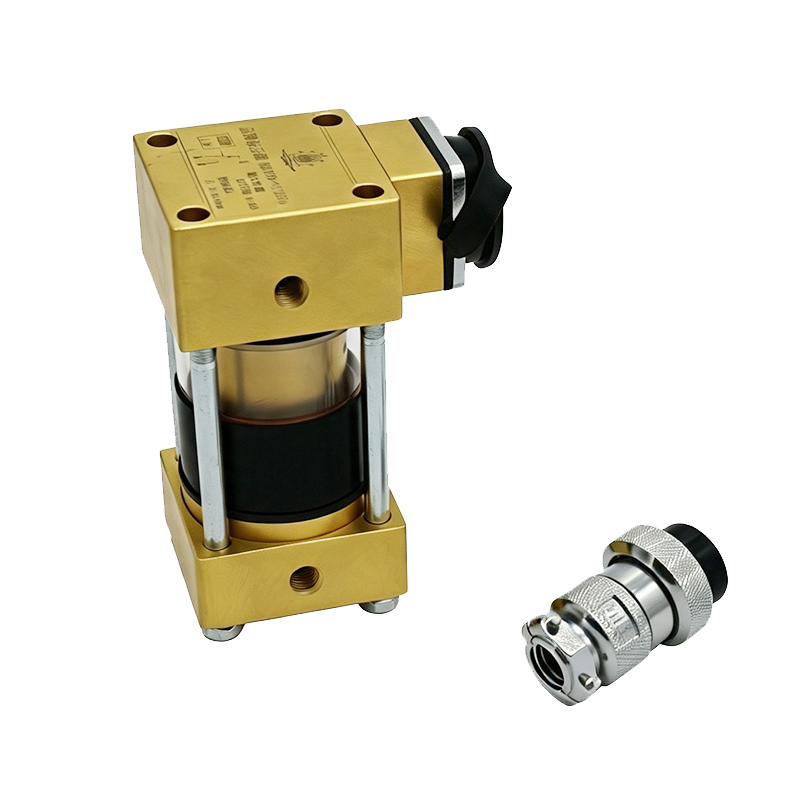

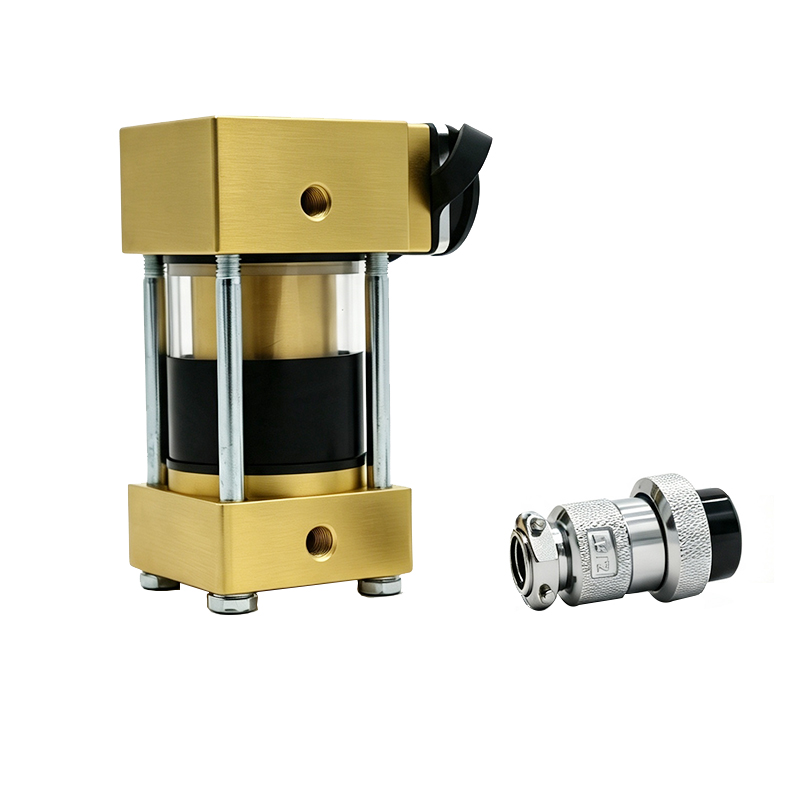

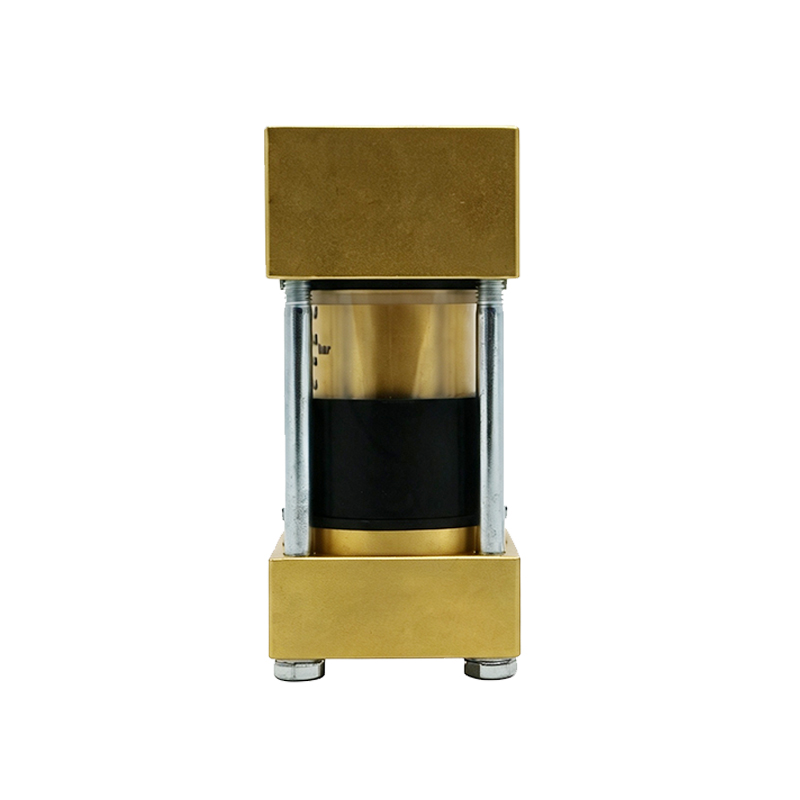

The differential pressure indicator is a detection device mounted on hydraulic filters to real-time monitor the pressure difference across filter elements. When contamination buildup on the filter element causes the pressure differential to reach the preset threshold, the indicator triggers a mechanical or electrical alarm signal to alert operators to replace the filter element promptly. This effectively safeguards the hydraulic system and prevents equipment malfunctions resulting from clogged filter cartridges.
The differential pressure indicator is a detection device mounted on hydraulic filters to real-time monitor the pressure difference across filter elements. When contamination buildup on the filter element causes the pressure differential to reach the preset threshold, the indicator triggers a mechanical or electrical alarm signal to alert operators to replace the filter element promptly. This effectively safeguards the hydraulic system and prevents equipment malfunctions resulting from clogged filter cartridges.
Constructed with a high-strength aluminum alloy body, precision sealing structure and highly sensitive detection mechanism, this product delivers fast response, accurate measurement, high pressure resistance, vibration resistance and long service life. It is widely applicable to construction machinery, hydraulic power stations, mining equipment, metallurgical machinery, marine hydraulic systems and industrial automation equipment.
| Item | Parameter |
|---|---|
| Product Name | Differential Pressure Indicator |
| English Name | Differential Pressure Indicator |
| Product Type | Filter Clogging Alarm |
| Mounting Position | Hydraulic Filter |
| Housing Material | Aluminum Alloy |
| Sealing Material | NBR / FKM (Optional) |
| Working Medium | Hydraulic Oil, Lubricating Oil |
| Working Pressure | Customizable |
| Alarm Differential Pressure | 0.2～1.0 MPa (Customizable) |
| Output Type | Mechanical / Electrical Contact Type |
| Connection Thread | G, NPT, UNF and other options available |
| Operating Temperature | -20℃～+100℃ |
| Protection Class | IP65 (Electrical Model) |
| Installation Method | Threaded Mounting |
| Service Life | Long-life Design |
| OEM/ODM Service | Supported |
| Advantage | Description |
|---|---|
| High Sensitivity | Rapid detection of filter clogging |
| Precise Measurement | Minor error in differential pressure detection |
| Reliable Sealing | Prevents hydraulic oil leakage |
| Easy Installation | Standard thread interface design |
| Extended Service Life | High-quality springs and sealing components |
| Corrosion Resistance | Anodized aluminum alloy shell |
| Strong Anti-vibration Performance | Ideal for construction machinery |
| Customization Available | Adjustable pressure value, thread interface and voltage |
| Item | Details |
|---|---|
| Minimum Order Quantity | 1 piece (Samples acceptable) |
| OEM Service | Supported |
| ODM Service | Supported |
| Packaging Method | Dust bag + Foam liner + Inner carton + Export outer carton |
| Custom Packaging | Available upon request |
| Shipping Method | Express / Air freight / Sea freight |
| Lead Time | 15-20 working days |
